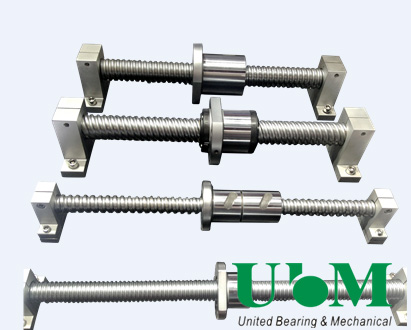

- Model： DFU FORM B series
DFU FORM B series
Details
| ITEM NO | DIMENSION | |||||||||||||||
| d | l | Da | D | A | B | L | W | X | G | H | Q | n | Ca | Coa | K | |
| DFU1605-4 | 16 | 5 | 3.175 | 28 | 48 | 10 | 100 | 38 | 5.5 | 44 | 40 | M6 | 4 | 780 | 1790 | 36 |
| DFU1610-3 | 16 | 10 | 3.175 | 28 | 48 | 10 | 118 | 38 | 5.5 | 44 | 40 | M6 | 3 | 509 | 833 | 31 |
| DFU2005-4 | 20 | 5 | 3.175 | 36 | 58 | 10 | 101 | 47 | 6.6 | 51 | 44 | M6 | 4 | 1130 | 2380 | 52 |
| DFU2505-4 | 25 | 5 | 3.175 | 40 | 62 | 10 | 101 | 51 | 6.6 | 55 | 48 | M6 | 4 | 1280 | 3110 | 64 |
| DFU2510-4 | 25 | 10 | 4.762 | 40 | 62 | 12 | 145 | 51 | 6.6 | 55 | 48 | M6 | 4 | 1071 | 1938 | 60 |
| DFU3205-4 | 32 | 5 | 3.175 | 50 | 80 | 12 | 102 | 65 | 9 | 71 | 62 | M6 | 4 | 1450 | 4150 | 80 |
| DFU3210-4 | 32 | 10 | 6.35 | 50 | 80 | 12 | 162 | 65 | 9 | 71 | 62 | M6 | 4 | 3390 | 7170 | 79 |
| DFU4005-4 | 40 | 5 | 3.175 | 63 | 93 | 14 | 105 | 78 | 9 | 81.5 | 70 | M8 | 4 | 1610 | 5330 | 98 |
| DFU4010-4 | 40 | 10 | 6.35 | 63 | 93 | 14 | 165 | 78 | 9 | 81.5 | 70 | M8 | 4 | 3910 | 9520 | 99 |
| DFU5010-4 | 50 | 10 | 6.35 | 75 | 110 | 16 | 171 | 93 | 11 | 97.5 | 85 | M8 | 4 | 4450 | 12500 | 122 |
| DFU6310-4 | 63 | 10 | 6.35 | 90 | 125 | 18 | 182 | 108 | 11 | 110 | 95 | M8 | 4 | 5070 | 16600 | 154 |
| DFU8010-4 | 80 | 10 | 6.35 | 105 | 145 | 20 | 182 | 125 | 13.5 | 127.5 | 110 | M8 | 4 | 5620 | 21300 | 187 |
