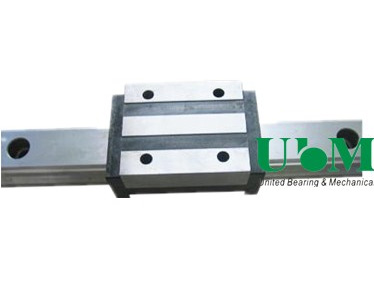

- Model： AS...B & BS series
AS...B & BS series
Details
| Type | Dimension of Assembly | Dimension of Slide carriage | Dimension of Guide rail | ||||||||||||
| H | W | W2 | E | L | B×J | MQ×l | L1 | Oil Hole | T1 | N | W1 | H1 | F | d×D×h | |
| UBM AS15B | 24 | 34 | 9.5 | 4.6 | 65 | 26×26 | M4×5.6 | 40 | Ф3 | 4.3 | 5 | 15 | 14 | 60 | 4.5×7.5×5.3 |
| UBM AS15BS | 47 | 26×- | 21.6 | ||||||||||||
| UBM AS20B | 28 | 42 | 11 | 5 | 75 | 32×32 | M5×6.4 | 49 | M6×1 | 5 | 15.6 | 20 | 18 | 60 | 6×9.5×8.5 |
| UBM AS20BS | 57 | 32×- | 28 | ||||||||||||
| UBM AS25B | 33 | 48 | 12.5 | 7 | 90.5 | 35×35 | M6×8 | 57 | M6×1 | 4.8 | 15.6 | 23 | 22 | 60 | 7×11×9 |
| UBM AS25BS | 66 | 35×- | 31.5 | ||||||||||||
| UBM AS25BL | 113 | 35×50 | 79.1 | ||||||||||||
| UBM AS30B | 42 | 60 | 16 | 9 | 108 | 40×40 | M8×11.5 | 72 | M6×1 | 7 | 15.6 | 28 | 26 | 80 | 9×14×12 |
| UBM AS30BS | 75 | 40×- | 38.6 | ||||||||||||
| UBM AS30BL | 131 | 40×60 | 94.3 | ||||||||||||
| UBM AS35B | 48 | 70 | 18 | 9.5 | 120 | 50×50 | M8×11.2 | 80 | M6×1 | 8 | 15.6 | 34 | 29 | 80 | 9×14×12 |
| UBM AS35BS | 75 | 50×- | 45.7 | ||||||||||||
| UBM AS35BL | 146 | 50×72 | 105.8 | ||||||||||||
| UBM AS45B | 60 | 86 | 20.5 | 14 | 146 | 60×60 | M10×13 | 105 | M8×1 | 8.5 | 16 | 45 | 38 | 105 | 14×20×17 |
| UBM AS45BL | 171 | 60×80 | 129.8 | ||||||||||||
