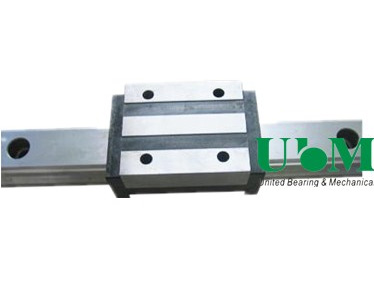

- Model： AH...C & CL series
AH...C & CL series
Details
| Type | Dimension of Assembly | Dimension of Slide carriage | Dimension of Guide rail | ||||||||||||
| H | W | W2 | E | L | B×J | MQ×l | L1 | Oil Hole | T1 | N | W1 | H1 | F | d×D×h | |
| UBM AH15C | 24 | 47 | 16 | 4.6 | 65 | 38×30 | Ф4.5×8 | 40 | Ф3 | 4.3 | 5 | 15 | 14 | 60 | 4.5×7.5×5.3 |
| UBM AH20C | 30 | 63 | 21.5 | 5 | 75 | 53×40 | Ф6×9 | 49 | M6×1 | 7 | 15.6 | 20 | 18 | 60 | 6×9.5×8.5 |
| UBM AH20CL | 91 | 63.4 | |||||||||||||
| UBM AH25C | 36 | 70 | 23.5 | 7 | 90.5 | 57×45 | Ф7×12 | 57 | M6×1 | 11.8 | 15.6 | 23 | 22 | 60 | 7×11×9 |
| UBM AH25CL | 113 | 79.1 | |||||||||||||
| UBM AH30C | 42 | 90 | 31 | 9 | 108 | 72×52 | Ф9×12 | 72 | M6×1 | 10 | 15.6 | 28 | 26 | 80 | 9×14×12 |
| UBM AH30CL | 131 | 94.3 | |||||||||||||
| UBM AH35C | 48 | 100 | 33 | 9.5 | 120 | 82×62 | Ф9×13 | 80 | M6×1 | 15 | 15.6 | 34 | 29 | 80 | 9×14×12 |
| UBM AH35CL | 146 | 105.8 | |||||||||||||
| UBM AH45C | 60 | 120 | 37.5 | 14 | 146 | 100×80 | Ф11×15 | 105 | M8×1 | 18.5 | 16 | 45 | 38 | 105 | 14×20×17 |
| UBM AH45CL | 171 | 129.8 | |||||||||||||
