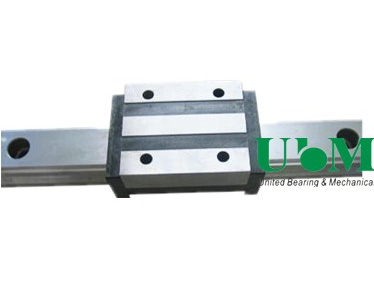

- Model： CH...A & AL series
CH...A & AL series
Details
| Type | Dimension of Assembly | Dimension of Slide carriage | Dimension of Guide rail | ||||||||||||
| H | W | W2 | E | L | B×J | MQ×l **/* | L1 | Oil Hole | T1 | N | W1 | H1 | F | d×D×h | |
| UBM CH20A | 30 | 63 | 21.5 | 6 | 87 | 53×40 | M6×10 | 59 | M6×1 | 7.5 | 15.6 | 20 | 16.5 | 60 | 6×9.5×8.5 |
| UBM CH20AL | 106 | 78 | |||||||||||||
| UBM CH25A | 36 | 70 | 23.5 | 6 | 102 | 57×45 | M8×12 | 71 | M6×1 | 10 | 15.6 | 23 | 20 | 60 | 7×11×9 |
| UBM CH25AL | 119 | 88 | |||||||||||||
| UBM CH30A | 42 | 90 | 31 | 7 | 116 | 72×52 | M10×15 | 80 | M6×1 | 12 | 15.6 | 28 | 23 | 80 | 9×14×12 |
| UBM CH30AL | 141 | 105 | |||||||||||||
| UBM CH35A | 48 | 100 | 33 | 7.5 | 132 | 82×62 | M10×17 | 93 | M6×1 | 12 | 15.6 | 34 | 26 | 80 | 9×14×12 |
| UBM CH35AL | 162 | 123 | |||||||||||||
| UBM CH45A | 60 | 120 | 37.5 | 8.9 | 150 | 100×80 | M12×17 | 106 | M8×1 | 16 | 16 | 45 | 32 | 105 | 14×20×17 |
| UBM CH45AL | 184 | 140 | |||||||||||||
| UBM CH55A | 70 | 140 | 43.5 | 12.7 | 181 | 116×95 | M14×21 | 131 | M8×1 | 20 | 16 | 53 | 38 | 120 | 16×23×20 |
| UBM CH55AL | 223 | 173 | |||||||||||||
