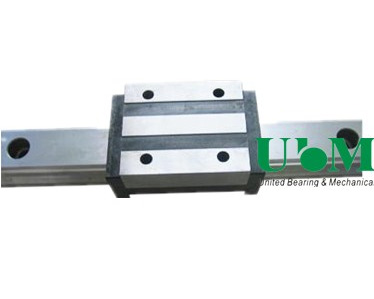

- Model： CH...B & BL series
CH...B & BL series
Details
| Type | Dimension of Assembly | Dimension of Slide carriage | Dimension of Guide rail | ||||||||||||
| H | W | W2 | E | L | B×J | MQ×l | L1 | Oil Hole | T1 | N | W1 | H1 | F | d×D×h | |
| UBM CH20B | 30 | 44 | 12 | 6 | 87 | 32×36 | M5×7 | 59 | M6×1 | 7.5 | 15.6 | 20 | 16.5 | 60 | 6×9.5×8.5 |
| UBM CH20BL | 106 | 32×50 | 78 | ||||||||||||
| UBM CH25B | 40 | 48 | 12.5 | 6 | 102 | 35×35 | M6×10 | 71 | M6×1 | 14 | 15.6 | 23 | 20 | 60 | 7×11×9 |
| UBM CH25BL | 119 | 35×50 | 88 | ||||||||||||
| UBM CH30B | 45 | 60 | 16 | 7 | 116 | 40×40 | M8×12 | 80 | M6×1 | 15 | 15.6 | 28 | 23 | 80 | 9×14×12 |
| UBM CH30BL | 141 | 40×60 | 105 | ||||||||||||
| UBM CH35B | 55 | 70 | 18 | 7.5 | 132 | 50×50 | M8×14 | 93 | M6×1 | 19 | 15.6 | 34 | 26 | 80 | 9×14×12 |
| UBM CH35BL | 162 | 50×72 | 123 | ||||||||||||
| UBM CH45B | 70 | 86 | 20.5 | 8.9 | 150 | 60×60 | M10×16 | 106 | M8×1 | 26 | 16 | 45 | 32 | 105 | 14×20×17 |
| UBM CH45BL | 184 | 60×80 | 140 | ||||||||||||
| UBM CH55B | 80 | 100 | 23.5 | 12.7 | 181 | 75×75 | M12×19 | 131 | M8×1 | 30 | 16 | 53 | 38 | 120 | 16×23×20 |
| UBM CH55BL | 223 | 75×95 | 173 | ||||||||||||
