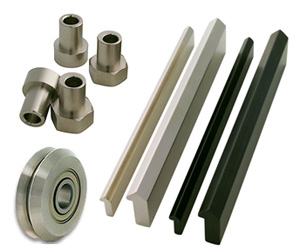

- Model： FS M series
FS M series
Details
| Designation | Mass | Dimensions | ||||||||||
| H | h | S | d | D | c | e | a | I | I1 | |||
| UBM | ±0.1 | ±0.1 | ±0.05 | ﹢0.05 | ||||||||
| Kg/m | mm | |||||||||||
| FS 19 M | 0.6 | 20.95 | 20 | 4.5 | 4 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 22 M | 0.9 | 27.86 | 26 | 5 | 5 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 32 M | 1.8 | 42.86 | 41 | 6 | 6 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 35 M | 2.6 | 47.86 | 46 | 8 | 6 | 9.0 | 20 | - | - | 90 | 30 | |
| FS 40 M | 3.7 | 63.58 | 61 | 8 | 6 | 9.0 | 20 | - | - | 90 | 30 | |
| FS 47 M | 5.6 | 78.58 | 76 | 10 | 6 | 11.5 | 20 | - | - | 90 | 30 | |
| FS 52 M | 7.7 | 89.78 | 87 | 12 | 8 | 13.5 | 20 | - | - | 90 | 30 | |
| FS 62 M | 11.2 | 104.76 | 102 | 15 | 8 | 13.5 | 20 | - | - | 90 | 30 | |
| FS 72 M | 15.8 | 122.98 | 120 | 18 | 10 | 17.5 | 30 | 30 | 60 | 90 | 30 | |
