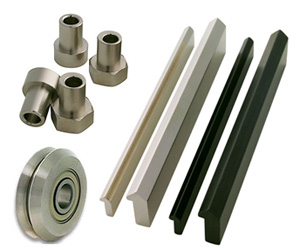

- Model： FS MT series
FS MT series
Details
| Designation | Mass | Dimensions | ||||||||||
| H | h | S | d | D | c | e | a | I | I1 | |||
| UBM | ±0.1 | ±0.1 | ±0.1 | ﹢0.05 | ||||||||
| Kg/m | mm | |||||||||||
| FS 19 MT | 0.8 | 22.2 | 21 | 5.3 | 4 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 22 MT | 1.1 | 28.8 | 27 | 5.8 | 5 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 32 MT | 2.1 | 43.8 | 42 | 6.8 | 6 | 6.5 | 15 | - | - | 90 | 30 | |
| FS 35 MT | 3 | 48.8 | 47 | 8.8 | 6 | 9.0 | 20 | - | - | 90 | 30 | |
| FS 40 MT | 4.1 | 64.5 | 62 | 8.8 | 6 | 9.0 | 20 | - | - | 90 | 30 | |
| FS 47 MT | 6.3 | 80.15 | 77.2 | 11 | 6 | 11.5 | 20 | - | - | 90 | 30 | |
| FS 52 MT | 8.5 | 91.35 | 88.2 | 13 | 8 | 13.5 | 20 | - | - | 90 | 30 | |
| FS 62 MT | 11.7 | 106 | 103 | 15.7 | 8 | 13.5 | 20 | - | - | 90 | 30 | |
| FS 72 MT | 16.9 | 124.6 | 121 | 19 | 10 | 17.5 | 30 | 30.5 | 60 | 90 | 30 | |
