- Model： GP MC series
GP MC series
Details

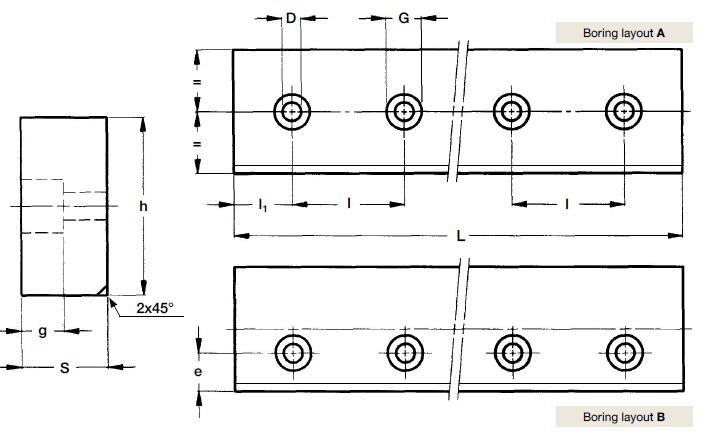

| Designation | Mass | Dimensions | ||||||||
| h | S | D | G | g | e | I | I1 | |||
| UBM | ±0.1 | ±0.05 | ﹢0.05 | |||||||
| Kg/m | mm | |||||||||
| GP 2626 MC | 5.3 | 26 | 26 | 9 | 15.0 | 9 | - | 120 | 50 | |
| GP 3232 MC | 8.1 | 32 | 32 | 9 | 15.0 | 9 | - | 150 | 60 | |
| GP 3617 MC | 4.8 | 36 | 17 | 605 | 11.0 | 6.8 | 12.5 | 120 | 50 | |
| GP 4321 MC | 7 | 43 | 21 | 9 | 15.0 | 9 | 11.5 | 150 | 60 | |
| GP 5050 MC | 19.6 | 50 | 50 | 18 | 26.0 | 17 | - | 180 | 60 | |
| GP 6222 MC | 10.7 | 62 | 22 | 9 | 15.0 | 9 | 21 | 150 | 60 | |
| GP 7232 MC | 18.1 | 72 | 32 | 13.5 | 20.0 | 13 | 24 | 180 | 70 | |
| GP 8222 MC | 14.2 | 82 | 22 | 13.5 | 20.0 | 13 | 20 | 180 | 70 | |
| Max length of single guide element L=5800mm | ||||||||||
