- Model： T series guide rail

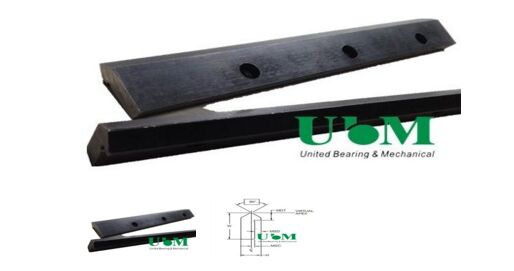

T series guide rail
Details
| Width | Height | Mounting | Mounting | Mounting | Weight | ||
| Designation | Shoulder | Shoulder to | Shoulder to | ||||
| Location | Centre Line | depth | |||||
| UBM | W | H | MDT | MSC | MSD | ||
| mm(inch) | Kg/m (lbs./ft) | ||||||
| T1 | 11.10(0.437) | 4.75(0.187) | 3.17(0.125) | 0.79(0.031) | 1.57(0.062) | 0.272(0.183) | |
| T2 | 15.87(0.625) | 6.35(0.250) | 4.75(0.187) | 0.79(0.031) | 2.39(0.094) | 0.510(0.343) | |
| T3 | 22.22(0.875) | 8.71(0.343) | 6.35(0.250) | 1.57(0.062) | 2.77(0.109) | 1.03(0.690) | |
| T4 | 26.97(1.062) | 11.10(0.437) | 7.92(0.312) | 2.36(0.093) | 3.17(0.125) | 1.64(1.100) | |
