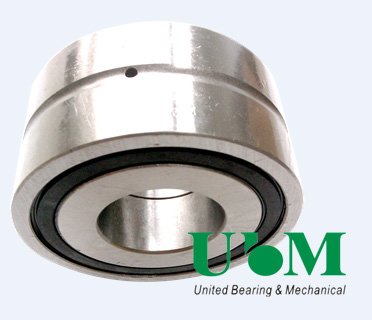

ZKLN series

  • Model:  ZKLN series

Details

型号 重量 尺寸 基本额定载荷 极限转速
Designation Mass Dimensions Basic Load Ratings Limiting
d B d1 D1 r1 r   Cr   Cor Speed
min. min. Dynamic Static
UBM g mm kN Rpm
ZKLN 1242.2RS 200 12 42 25 25 33.5 0.3 0.6 17 24.7 3800
ZKLN 1242.2Z 200 12 42 25 25 33.5 0.3 0.6 17 24.7 7600
ZKLN 1545.2RS 210 15 45 25 28 36 0.3 0.6 17.9 28 3500
ZKLN 1545.2Z 210 15 45 25 28 36 0.3 0.6 17.9 28 7000
ZKLN 1747.2RS 220 17 47 25 30 38 0.3 0.6 18.8 31 3300
ZKLN 1747.2Z 220 17 47 25 30 38 0.3 0.6 18.8 31 6600
ZKLN 2052.2RS 310 20 52 28 34.5 44 0.3 0.6 26 47 3000
ZKLN 2052.2Z 310 20 52 28 34.5 44 0.3 0.6 26 47 5400
ZKLN 2557.2RS 340 25 57 28 40.5 49 0.3 0.6 27.5 55 2600
ZKLN 2557.2Z 340 25 57 28 40.5 49 0.3 0.6 27.5 55 4700
ZKLN 3062.2RS 390 30 62 28 45.5 54 0.3 0.6 29 64 2200
ZKLN 3062.2Z 390 30 62 28 45.5 54 0.3 0.6 29 64 4300
ZKLN 3572.2RS 510 35 72 34 52 63 0.3 0.6 41 89 2000
ZKLN 3572.2Z 510 35 72 34 52 63 0.3 0.6 41 89 3800
ZKLN 4075.2RS 610 40 75 34 58 68 0.3 0.6 43 101 1800
ZKLN 4075.2Z 610 40 75 34 58 68 0.3 0.6 43 101 3300
ZKLN 5090.2RS 880 50 90 34 72 82 0.3 0.6 46.5 126 1500
ZKLN 5090.2Z 880 50 90 34 72 82 0.3 0.6 46.5 126 3000
