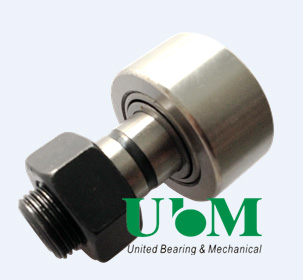

PWKR series

Model： PWKR series

Details


Designation	Mass	Designation	Mass	Dimensions													Basic Load Ratings				Limiting	Eccentric			Tightening
		With		D	d	C	r	B	B1	B2	G	G1	M1	C1	d2	A/F					Speed	Collar			Torque
		Eccentric					min.										Type Roller				grease				with Nut
		Collar															Cr	Cor	Fr	For		d1	B3	e
																	Dynamic	Static	Dynamic	Static
UBM	g	UBM	g	mm													kN				Rpm				Nm
PWKR35.2RS	164	——	——	35	16	18	0.6	52	32.5	7.8	M16×1.5	17	3	0.8	20	8	17.2	18.3	9.4	11.3	6000	20	12	1	58
——	——	PWKRE35.2RS	177	35	16	18	0.6	52	32.5	——	M16×1.5	17	——	0.8	20	8	17.2	18.3	9.4	11.3	6000	20	12	1	58
PWKR40.2RS	242	——	——	40	18	20	1	58	36.5	8	M18×1.5	19	3	0.8	22	8	19.4	20.8	13.8	13.8	5000	22	14	1	87
——	——	PWKRE40.2RS	258	40	18	20	1	58	36.5	——	M18×1.5	19	——	0.8	22	8	19.4	20.8	13.8	13.8	5000	22	14	1	87
PWKR47.2RS	380	PWKRE47.2RS	400	47	20	24	1	66	40.5	9	M20×1.5	21	4	0.8	27	10	30.6	33.6	19.3	25.5	3800	24	18	1	120
PWKR52.2RS	450	PWKRE52.2RS	470	52	20	24	1	66	40.5	9	M20×1.5	21	4	0.8	31	10	34.4	40.8	19.3	28	3800	24	18	1	120
PWKR62.2RS	795	PWKRE62.2RS	824	62	24	28	1	80	49.5	11	M24×1.5	25	4	1.3	38	14	52.4	69.8	25.5	39.5	2200	28	22	1	220
PWKR72.2RS	1020	PWKRE72.2RS	1050	72	24	28	1.1	80	49.5	11	M24×1.5	25	4	1.3	44	14	61.8	81.4	46.5	46.5	2200	28	22	1	220
PWKR80.2RS	1600	PWKRE80.2RS	1670	80	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	93.9	118.9	53	70	1800	35	29	1.5	450
PWKR85.2RS	1780	PWKRE85.2RS	1850	85	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	93.9	118.9	53	70	1800	35	29	1.5	450
PWKR90.2RS	1960	PWKRE90.2RS	2020	90	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	93.9	118.9	82	82	1800	35	29	1.5	450
