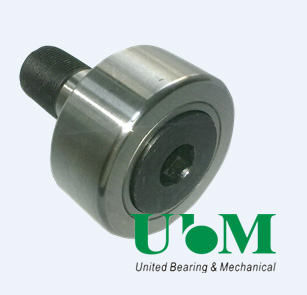

NUKR series

Model： NUKR series

Details


Designation	Mass	Designation	Mass	Dimensions													Basic Load Ratings				Limiting	Eccentric			Tightening
		With		D	d	C	r	B	B1	B2	G	G1	M1	C1	d2	A/F					Speed	Collar			Torque
		Eccentric			h7		min.										Type Roller				grease				with Nut
		Collar															Cr	Cor	Fr	For		d1	B3	e
																	Dynamic	Static	Dynamic	Static
UBM	g	UBM	g	mm													kN				Rpm				Nm
NUKR 35	164	——	——	35	16	18	0.6	52	32.5	7.8	M16×1.5	17	3	0.8	20	8	22.7	26.2	8.6	16.8	6500	20	12	1	58
——	——	NUKRE 35	177	35	16	18	0.6	52	29.5	7.8	M16×1.5	17	3	3.8	27	8	22.7	26.2	8.6	16.8	6500	20	12	1	58
NUKR 40	242	——	——	40	18	20	1	58	36.5	8	M18×1.5	19	3	0.8	22	8	27.7	32.4	13.1	22.6	5500	22	14	1	87
——	——	NUKRE 40	258	40	18	20	1	58	33.5	8	M18×1.5	19	3	3.8	30	8	27.7	32.4	13.1	22.6	5500	22	14	1	87
NUKR 47	380	NUKRE 47	400	47	20	24	1	66	40.5	9	M20×1.5	21	4	0.8	27	10	39.7	44	16.4	33	4200	24	18	1	120
NUKR 52	450	NUKRE 52	470	52	20	24	1	66	40.5	9	M20×1.5	21	4	0.8	31	10	44.7	55.2	17.3	34.5	3400	24	18	1	120
NUKR 62	795	NUKRE 62	824	62	24	28	1	80	49.5	11	M24×1.5	25	4	1.3	38	14	63.7	89.7	23.5	46.5	2600	28	22	1	220
NUKR 72	1020	NUKRE 72	1050	72	24	28	1.1	80	49.5	11	M24×1.5	25	4	1.3	44	14	74.1	104.6	32	60	2100	28	22	1	220
NUKR 80	1600	NUKRE 80	1670	80	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	107	141.4	47.5	96	1800	35	29	1.5	450
NUKR 85	1790	NUKRE 85	1860	85	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	107	141.4	——	——	1800	35	29	1.5	450
NUKR 90	1960	NUKRE 90	2020	90	30	35	1.1	100	63	15	M30×1.5	32	4	1	47	14	107	141.4	77	117	1800	35	29	1.5	450
