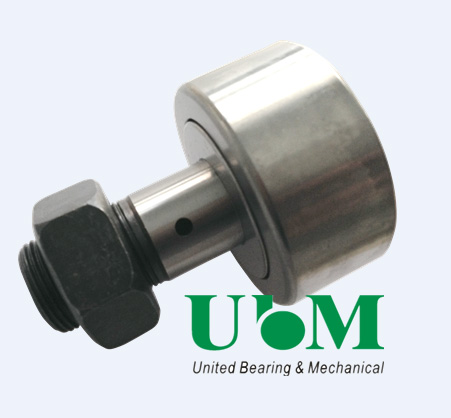

Model： KR series

Details


Designation	Mass	Designation	Mass	Dimensions													Basic Load Ratings		Limiting	Eccentric			Tightening
		With		D	d	C	r	B	B1	B2	G	G1	M	M1	C1	d2	Cr	Cor	Speed	Collar			Torque
		Eccentric					min.										Dynamic	Static					with Nut
		Collar																		d1	B3	e
UBM	g	UBM	g	mm													kN		Rpm	h9			Nm
KR 16	18	KRE 16	20	16	6	11	0.15	28	16	—	M6×1	8	4	—	0.6	12	2.81	2.58	14000	9	7	0.5	3
KRV 16	20	KRVE 16	22	16	6	11	0.15	28	16	—	M6×1	8	4	—	0.6	12	7.02	8.69	3800	9	7	0.5	3
KR 19	28	KRE 19	31	19	8	11	0.15	32	20	—	M8×1.25	10	4	—	0.6	14	3.26	3.33	11000	11	9	0.5	8
KRV 19	32	KRVE 19	35	19	8	11	0.15	32	20	—	M8×1.25	10	4	—	0.6	14	7.94	10.75	3100	11	9	0.5	8
KR 22	44	KRE 22	48	22	10	12	0.3	36	23	—	M10×1	12	4	—	0.6	17	4.33	5.12	8000	13	10	0.5	15
KRV 22	45	KRVE 22	49	22	10	12	0.3	36	23	—	M10×1	12	4	—	0.6	17	8.94	13.3	2600	13	10	0.5	15
KR 26	58	KRE 26	62	26	10	12	0.3	36	23	—	M10×1	12	4	—	0.6	17	4.33	5.12	8000	13	10	0.5	15
KRV 26	61	KRVE 26	65	26	10	12	0.3	36	23	—	M10×1	12	4	—	0.6	17	8.94	13.3	2600	13	10	0.5	15
KR 30	87	KRE 30	93	30	12	14	0.6	40	25	6	M12×1.5	13	6	3	0.6	23	6.97	7.06	5500	15	11	0.5	22
KRV 30	89	KRVE 30	95	30	12	14	0.6	40	25	6	M12×1.5	13	6	3	0.6	23	12.6	15.3	2100	15	11	0.5	22
KR 32	98	KRE 32	104	32	12	14	0.6	40	25	6	M12×1.5	13	6	3	0.6	23	6.97	7.06	5500	15	11	0.5	22
KRV 32	100	KRVE 32	106	32	12	14	0.6	40	25	6	M12×1.5	13	6	3	0.6	23	12.6	15.3	2100	15	11	0.5	22
KR 35	169	KRE 35	182	35	16	18	0.6	52	32.5	8	M16×1.5	17	6	3	0.8	27	10.3	14.8	3600	20	14	1	58
KRV 35	171	KRVE 35	184	35	16	18	0.6	52	32.5	8	M16×1.5	17	6	3	0.8	27	19.7	34.8	1600	20	14	1	58
KR 40	247	KRE 40	263	40	18	20	1	58	36.5	8	M18×1.5	19	6	3	0.8	32	18.2	22	2900	22	16	1	87
KRV 40	249	KRVE 40	265	40	18	20	1	58	36.5	8	M18×1.5	19	6	3	0.8	32	31.5	45.3	1400	22	16	1	87
KR 47	386	KRE 47	406	47	20	24	1	66	40.5	9	M20×1.5	21	8	4	0.8	37	22.2	29.9	2400	24	18	1	120
KRV 47	409	KRVE 47	423	47	20	24	1	66	40.5	9	M20×1.5	21	8	4	0.8	37	37.3	59.2	1400	24	18	1	120
KR 52	461	KRE 52	481	52	20	24	1	66	40.5	9	M20×1.5	21	8	4	0.8	37	22.2	29.9	2400	24	18	1	120
KRV 52	484	KRVE 52	504	52	20	24	1	66	40.5	9	M20×1.5	21	8	4	0.8	37	37.3	59.2	1300	24	18	1	120
KR 62	790	KRE 62	818	62	24	29	1	80	49.5	11	M24×1.5	25	8	4	0.8	44	32.8	47.3	1900	28	22	1	220
KRV 62	802	KRVE 62	830	62	24	29	1	80	49.5	11	M24×1.5	25	8	4	0.8	44	53.8	91	1100	28	22	1	220
KR 72	1040	KRE 72	—	72	24	29	1.1	80	49.5	11	M24×1.5	25	8	4	0.8	44	32.8	47.3	1900	28	22	1	220
KRV 72	1045	KRVE 72	—	72	24	29	1.1	80	49.5	11	M24×1.5	25	8	4	0.8	44	53.8	91	1100	28	22	1	220
KR 80	1550	KRE 80	—	80	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	48.2	83.9	1300	35	29	1.5	450
KRV 80	1561	KRVE 80	—	80	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	74.9	150.3	850	35	29	1.5	450
KR 85	—	KRE 85	—	85	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	48.2	83.9	1300	35	29	1.5	450
KRV 85	—	KRVE 85	—	85	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	74.9	150.3	850	35	29	1.5	450
KR 90	1950	KRE 90	—	90	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	48.2	83.9	1300	35	29	1.5	450
KRV 90	1970	KREV 90	—	90	30	35	1.1	100	63	15	M30×1.5	32	8	4	1	53	74.9	150.3	850	35	29	1.5	450
