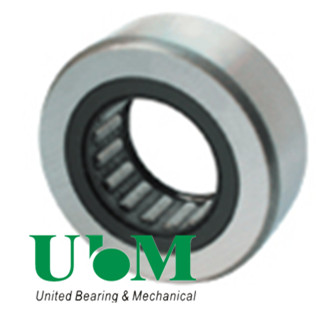

- Model： RNA series
RNA series
Details
| Designation | Mass | Designation | Mass | Dimensions | Basic Load Ratings | Limiting | ||||||||
| d | D | C | B | Fw | D1 | r | r1 | Cr | Cor | Speed | ||||
| F | min. | min. | Dynamic | Static | grease | |||||||||
| UBM | g | UBM | g | mm | kN | Rpm | ||||||||
| RNA22/6.2RS | — | NA22/6.2RS | — | 6 | 19 | 11.8 | 12 | 10 | 16 | 0.3 | 0.3 | 4.8 | 4.6 | —— |
| RNA2200.2RS | 52 | NA2200.2RS | 60 | 10 | 30 | 13.8 | 14 | 14 | 20 | 0.6 | 0.3 | 8 | 8.5 | 5500 |
| RNA2201.2RS | 57 | NA2201.2RS | 67 | 12 | 32 | 13.8 | 14 | 16 | 22 | 0.6 | 0.3 | 7.5 | 9 | 4700 |
| RNA2202.2RS | 60 | NA2202.2RS | 75 | 15 | 35 | 13.8 | 14 | 20 | 26 | 0.6 | 0.3 | 8.2 | 9.6 | 3400 |
| RNA2203.2RS | 94 | NA2203.2RS | 112 | 17 | 40 | 15.8 | 16 | 22 | 28 | 1 | 0.3 | 9.7 | 10.8 | 3000 |
| RNA2204.2RS | 152 | NA2204.2RS | 177 | 20 | 47 | 17.8 | 18 | 25 | 33 | 1 | 0.3 | 15.2 | 18.3 | 2300 |
| RNA2205.2RS | 179 | NA2205.2RS | 209 | 25 | 52 | 17.8 | 18 | 30 | 38 | 1 | 0.3 | 15.7 | 20 | 1800 |
| RNA2206.2RS | 284 | NA2206.2RS | 324 | 30 | 62 | 19.8 | 20 | 35 | 43 | 1 | 0.6 | 18.4 | 25.5 | 1400 |
| RNA2207.2RS | 432 | NA2207.2RS | 505 | 35 | 72 | 22.7 | 23 | 42 | 50 | 1.1 | 0.6 | 31.8 | 45.7 | 1100 |
| RNA2208.2RS | 530 | NA2208.2RS | 628 | 40 | 80 | 22.7 | 23 | 48 | 57 | 1.1 | 0.6 | 27.5 | 40.5 | 850 |
| RNA2209.2RS | 545 | NA2209.2RS | 655 | 45 | 85 | 22.7 | 23 | 52 | 62 | 1.1 | 0.6 | 28.5 | 43 | 800 |
| RNA2210.2RS | 563 | NA2210.2RS | 690 | 50 | 90 | 22.7 | 23 | 58 | 68 | 1.1 | 0.6 | 43.2 | 70 | 650 |
