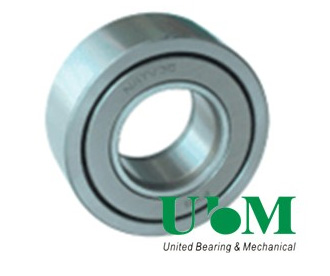

- Model： NATR series
NATR series
Details
| Designation | Mass | Designation | Mass | Dimensions | Basic Load Ratings | Limiting | ||||||
| d | D | B | C | d1 | r | Cr | Cor | Speed | ||||
| min. | Dynamic | Static | grease | |||||||||
| UBM | g | UBM | g | mm | kN | Rpm | ||||||
| NATR 5 | 14 | NATR 5PP | 14 | 5 | 16 | 12 | 11 | 12 | 0.15 | 2.8 | 2.5 | 14000 |
| NATR 6 | 20 | NATR 6PP | 20 | 6 | 19 | 12 | 11 | 14 | 0.15 | 3.2 | 3.3 | 11000 |
| NATR 8 | 41 | NATR 8PP | 41 | 8 | 24 | 15 | 14 | 19 | 0.3 | 4.8 | 4.8 | 7500 |
| NATR 10 | 64 | NATR 10PP | 64 | 10 | 30 | 15 | 14 | 23 | 0.6 | 6.9 | 7 | 5500 |
| NATR 12 | 71 | NATR 12PP | 71 | 12 | 32 | 15 | 14 | 25 | 0.6 | 6.9 | 7.1 | 4500 |
| NATR 15 | 103 | NATR 15PP | 103 | 15 | 35 | 19 | 18 | 27 | 0.6 | 10.3 | 14.8 | 3600 |
| NATR 17 | 144 | NATR 17PP | 144 | 17 | 40 | 21 | 20 | 32 | 1 | 18.2 | 21.9 | 2900 |
| NATR 20 | 246 | NATR 20PP | 246 | 20 | 47 | 25 | 24 | 37 | 1 | 22.4 | 29.9 | 2400 |
| NATR 25 | 275 | NATR 25PP | 275 | 25 | 52 | 25 | 24 | 42 | 1 | 24 | 34.2 | 1800 |
| NATR 30 | 470 | NATR 30PP | 470 | 30 | 62 | 29 | 28 | 51 | 1 | 32.9 | 50.3 | 1300 |
| NATR 35 | 635 | NATR 35PP | 635 | 35 | 72 | 29 | 28 | 58 | 1.1 | 34.4 | 55.8 | 1000 |
| NATR 40 | 805 | NATR 40PP | 805 | 40 | 80 | 32 | 30 | 66 | 1.1 | 38.5 | 66.6 | 850 |
| NATR 45 | 910 | NATR 45PP | 910 | 45 | 85 | 32 | 30 | 72 | 1.1 | 42.6 | 77.8 | 750 |
| NATR 50 | 960 | NATR 50PP | 960 | 50 | 90 | 32 | 30 | 76 | 1.1 | 44.3 | 85.1 | 650 |
