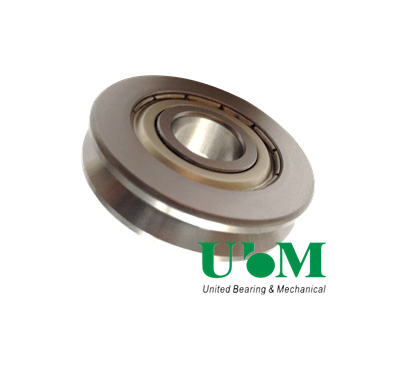

AT series

Model： AT series

Details


Designation	Dimensions							Basic Load Ratings		Mass
	d	D	D1	B	Ra	α	r	Cr	Cor
							min.	Dynamic	Static
UBM	mm							kN		g
A507.2Z	5	21	19	6	0.5	90	0.3	2.2	0.89	11
A507.2RS	5	21	19	6	0.5	90	0.3	2.2	0.89	11
A603.2Z	6	21	19	6	0.5	90	0.3	2.2	0.89	11
A603.2RS	6	21	19	6	0.5	90	0.3	2.2	0.89	11
A806.2Z	8	26	23	7	0.5	90	0.3	3.3	1.37	19
A806.2RS	8	26	23	7	0.5	90	0.3	3.3	1.37	19
A1001.2Z	10	30	27	8	0.5	90	0.3	4.55	1.97	31
A1001.2RS	10	30	27	8	0.5	90	0.3	4.55	1.97	31
A1002.2Z	10	35	31	9	0.5	90	0.6	6	2.68	46
A1002.2RS	10	35	31	9	0.5	90	0.6	6	2.68	46
A1500.2Z	15	47	41	11	0.5	90	0.6	7.6	3.7	104
A1500.2Z	15	47	41	11	0.5	90	0.6	7.6	3.7	104
AT8E00*	8	25	20.4	14	0.7	70	2	5.09	2.6	34
