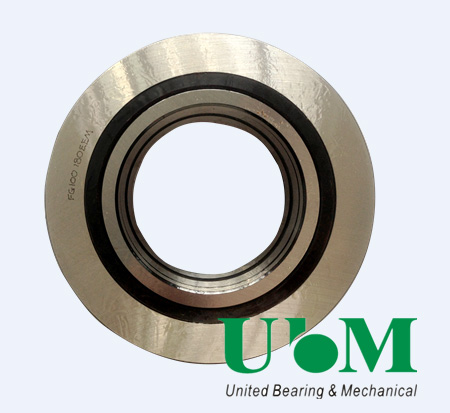

- Model： FKU series
FKU series
Details
| Basic Load Ratings | Life coefficients | ||||||||||||||||||
| Designation | Mass | Dimensions | Dynamic load | Limit loads | |||||||||||||||
| De | d | T | m | A | B | F | d2 | M | Cw | Fr | Fa | Pa/Pr≤0.1 | Pa/Pr＞0.1 | ||||||
| UBM | radial | axial | X | Y | X | Y | |||||||||||||
| Kg | mm | kN | |||||||||||||||||
| FKU 55 | 0.5 | 55 | 15 | 14.6 | 21.0 | 35 | 42 | 25 | 2.5 | 30 | 41.65 | 11.9 | 12.4 | 1 | 4.67 | 0.77 | 6.98 | ||
| FKU 65 | 0.6 | 65 | 20 | 18 | 22.5 | 37 | 45 | 29 | 3 | 35 | 46.8 | 22.1 | 12.75 | 1 | 3.93 | 0.74 | 6.55 | ||
| FKU 75 | 1.2 | 75 | 25 | 23.7 | 28.0 | 45 | 56 | 37 | 4 | 44 | 66.7 | 31.3 | 18.9 | 1 | 4.67 | 0.77 | 6.98 | ||
| FKU 95 | 2.3 | 95 | 28 | 25.5 | 32.0 | 53 56 | 64 | 42 | 4 | 49 | 116.8 | 43.7 | 37.8 | 1 | 3 | 0.8 | 4.96 | ||
| FKU 115 | 3.96 | 115 | 35 | 33.5 | 36.0 | 60 63 | 72 | 52 | 4 | 59 | 182.45 | 55.6 | 50 | 1 | 4.26 | 0.72 | 7.1 | ||
