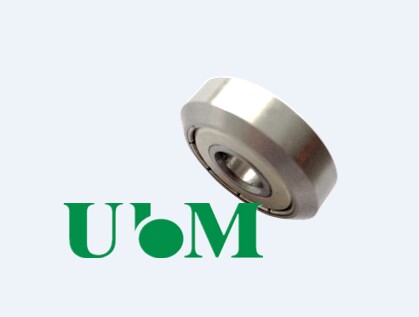

- Model： RE series
RE series
Details
| Designation | Dimensions | Basic Load Ratings | Mass | ||||||||
| B | D | E | d | C | α | Cr | Cor | ||||
| Dynamic | Static | ||||||||||
| UBM | mm | kN | g | ||||||||
| RE701ZZ | BHJ-13-C | 13 C/E | 4 | 9.63 | 12.7 | 4 | 0.35 | 35 | 0.71 | 0.27 | 3 |
| RE701.2RS | |||||||||||
| RE702ZZ | BHJ-25-C | 25 C/E | 7 | 20.4 | 25 | 8 | 1 | 35 | 3.3 | 1.36 | 17 |
| RE702.2RS | |||||||||||
| RE703ZZ | BHJ-34-C | 34 C/E | 9 | 27.17 | 34 | 10 | 1 | 35 | 6.04 | 2.68 | 40 |
| RE703.2RS | |||||||||||
| RE704ZZ | BHJ-54-C | 54 C/E | 14 | 42 | 54 | 14 | 1.5 | 35 | 9.5 | 4.8 | 80 |
| RE704.2RS | |||||||||||
| RE901ZZ | 4 | 9.63 | 12.7 | 4 | 0.35 | 45 | 0.71 | 0.27 | 3 | ||
| RE901.2RS | |||||||||||
| RE902ZZ | 7 | 20.4 | 25 | 8 | 1 | 45 | 3.3 | 1.36 | 17 | ||
| RE902.2RS | |||||||||||
| RE903ZZ | 9 | 27.17 | 34 | 10 | 1 | 45 | 6.04 | 2.68 | 40 | ||
| RE903.2RS | |||||||||||
| RE807.2RS | 6 | 18.5 | 22 | 7 | 0.5 | 40 | 2.2 | 0.9 | 12 | ||
