- Model： CAW series straightening roller
CAW series straightening roller
Details

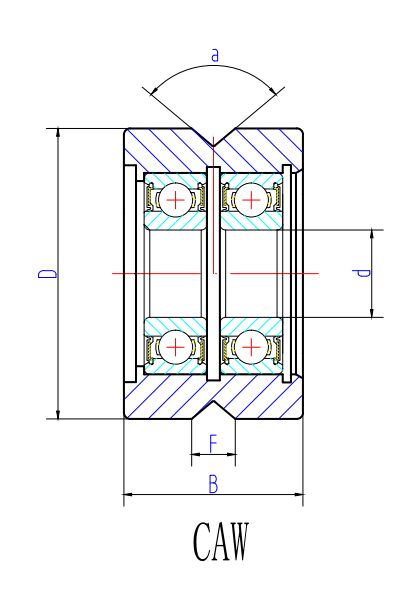

| 型号 | 线 | 尺寸 | a | C/din N | |||
| Designation | Wire | Dimensions | |||||
| d | B | D | F | ||||
| UBM | mm | ||||||
| CAW222 | 2 | 7 | 21 | 23 | 2.2 | 100° | 3640 |
| CAW232 | 3.5 | 10 | 27 | 32 | 3.5 | 100° | 7100 |
| CAW242 | 5 | 15 | 30 | 42 | 6 | 110° | 8000 |
| CAW247 | 7 | 17 | 33 | 47 | 6.1 | 100° | 9300 |
| CAW262 | 10 | 25 | 39 | 65 | 11.5 | 100° | 11700 |
| CAW265 | 10 | 25 | 35 | 65 | 12.2 | 110° | 11700 |
| CAW280 | 15 | 30 | 47 | 80 | 17.4 | 100° | 17300 |
| CAW290 | 15 | 30 | 38 | 90 | 15.5 | 100° | 30000 |
| CAW2110 | 20 | 40 | 50 | 110 | 31.38 | 100° | 20400 |
| CAW2150 | 25 | 45 | 80 | 150 | 32.5 | 90° | 51100 |
