- Model： CAR2 series straightening roller

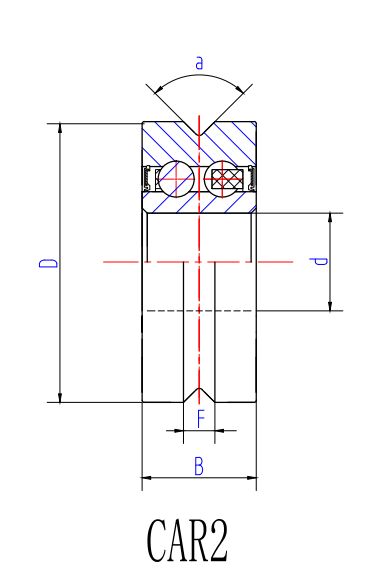

CAR2 series straightening roller
Details
| 型号 | 线 | 尺寸 | a | C/din N | |||
| Designation | Wire | Dimensions | |||||
| d | B | D | F | ||||
| UBM | mm | ||||||
| CAR2-32 | 4 | 10 | 14 | 32 | 4.24 | 100° | 7200 |
| CAR2-40 | 6 | 15 | 15.9 | 40 | 6.08 | 100° | 8150 |
| CAR2-52 | 9 | 20 | 20.6 | 52 | 8.4 | 110° | 15600 |
Details
| 型号 | 线 | 尺寸 | a | C/din N | |||
| Designation | Wire | Dimensions | |||||
| d | B | D | F | ||||
| UBM | mm | ||||||
| CAR2-32 | 4 | 10 | 14 | 32 | 4.24 | 100° | 7200 |
| CAR2-40 | 6 | 15 | 15.9 | 40 | 6.08 | 100° | 8150 |
| CAR2-52 | 9 | 20 | 20.6 | 52 | 8.4 | 110° | 15600 |
