- Model： CAR series straightening roller
CAR series straightening roller
Details

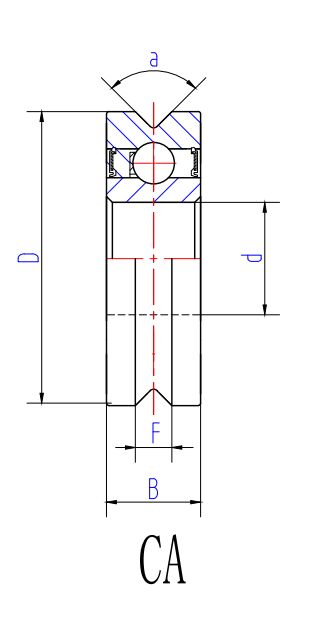

| 型号 | 线 | 尺寸 | a | C/din N | |||
| Designation | Wire | Dimensions | |||||
| d | B | D | F | ||||
| UBM | mm | ||||||
| CAR32 | 5 | 10 | 9 | 32 | 5.13 | 100° | 3900 |
| CAR40 | 5 | 15 | 11 | 40 | 4.65 | 100° | 6000 |
| CAR47 | 6 | 15 | 11 | 47 | 6.33 | 90° | 6000 |
| CAR52 | 7 | 20 | 14 | 52 | 7.5 | 100° | 9800 |
| CAR62 | 10 | 25 | 15 | 62 | 7.5 | 100° | 10800 |
