PLR series

  • Model：  PLR series

Details

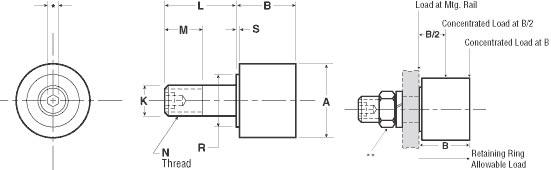

Designation Dimensions
Item No. Part  A   A B K  K  L   M   R   S  Mounting  Hole
Number Tolerance Tolerance  Hole Tolerance
UBM In
95086 PLR-1-1/2 1.5  0 -0.001 1.187 0.625  0 -0.001 1.5 0.75 0.75 0.062 0.626 0.001 -0
95112 PLR-1-3/4 1.75  0 -0.001 1.187 0.75  0 -0.001 1.75 0.875 1 0.062 0.751 0.001 -0
95115 PLR-1-3/4-5 1.75  0 -0.001 1.437 0.5  0 -0.001 0.875 0.75 0.625 0.312 0.501 0.001 -0
95125 PLR-2 2  0 -0.001 1.687 0.875  0 -0.001 2 1.125 1 0.062 0.876 0.001 -0
95126 PLR-2-3 2  0 -0.001 1.375 0.875  0 -0.001 2 1.125 1 0.062 0.876 0.001 -0
95152 PLR-2-1/4 2.25  0 -0.001 1.687 0.875  0 -0.001 2 1.125 1 0.062 0.876 0.001 -0
95160 PLR-2-1/2 2.5  0 -0.001 1.687 1  0 -0.001 2.25 1.5 1.25 0.062 1.001 0.001 -0
95164 PLR-2-1/2-10 2.5  0 -0.001 1.812 1  0 -0.001 2.25 1.5 1.25 0.187 1.001 0.001 -0
95165 PLR-2-1/2-16 2.5  0 -0.001 1.812 1  0 -0.001 2.25 1.5 1.25 0.062 1.001 0.001 -0
95190 PLR-2-3/4 2.75  0 -0.001 1.687 1  0 -0.001 2.25 1.5 1.25 0.062 1.001 0.001 -0
95200 PLR-3 3  0 -0.001 2 1.25  0 -0.001 2.5 1.75 1.75 0.062 1.251 0.001 -0
95245 PLR-3-1/4 3.25  0 -0.001 2 1.25  0 -0.001 2.5 1.75 1.75 0.062 1.251 0.001 -0
95248 PLR-3-1/2 3.5  0 -0.001 2 1.25  0 -0.001 2.75 1.75 1.75 0.062 1.251 0.001 -0
95268 PLR-4 4  0 -0.001 2 1.25  0 -0.001 2.75 1.75 1.75 0.062 1.251 0.001 -0
95304 PLR-4-1/2 4.5  0 -0.001 2 1.25  0 -0.001 2.75 1.75 1.75 0.062 1.251 0.001 -0
95323 PLR-5 5  0 -0.001 3 2  0 -0.001 4.5 2.5 3.25 0.062 2.001 0.001 -0
95353 PLR-6 6  0 -0.001 3 2.5  0 -0.001 5.5 3.25 3.25 0.062 2.501 0.001 -0
95374 PLR-7 7  0 -0.001 3 2.5  0 -0.001 5.5 3.25 3.25 0.062 2.501 0.001 -0
95386 PLR-8 8  0 -0.001 3 2.5  0 -0.001 5.5 3.25 3.25 0.062 2.501 0.001 -0
95398 PLR-10 10  0 -0.001 3 2.5  0 -0.001 5.5 3.25 3.25 0.062 2.501 0.001 -0
95399 PLR-10-1 10  0 -0.001 5 4.25  0 -0.001 9 4 5 0.125 4.252 0.001 -0
97318 PLR-1 1  0 -0.001 0.781 0.437  0 -0.001 1 0.5 0.5 0.031 0.438 0.001 -0
97319 PLR-1-1/8 1.125  0 -0.001 0.781 0.437  0 -0.001 1 0.5 0.5 0.031 0.438 0.001 -0
97320 PLR-1-1/4 1.25  0 -0.001 0.844 0.5  0 -0.001 1.25 0.625 0.625 0.031 0.501 0.001 -0
97321 PLR-1-3/8 1.375  0 -0.001 0.844 0.5  0 -0.001 1.25 0.625 0.625 0.031 0.501 0.001 -0
