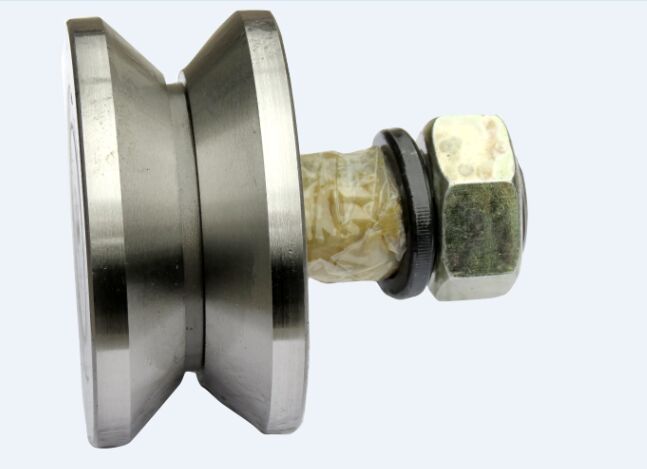

- Model： HPV series
HPV series
Details
| Designation | Dimensions | |||||||||||||
| Item No. | Part | A | B | F | G | K | K | L | M | N | R | S | Mounting | Hole |
| Number | Tolerance | Hole | Tolerance | |||||||||||
| UBM | mm | |||||||||||||
| 95648 | HPV-40 | 60 | 33 | 40 | 17 | 14 | 0 -0.02 | 40 | 26 | M14x2 | 18 | 1.6 | 14.02 | 0.02 +0 |
| 95651 | HPV-62-1 | 90 | 44.5 | 62 | 23 | 24 | 0 -0.02 | 49.5 | 25 | M24x1.5 | 32 | 1.6 | 24.02 | 0.02 +0 |
| 95652 | HPV-62 | 90 | 44.5 | 62 | 23 | 24 | 0 -0.02 | 57.9 | 34.9 | M24x3 | 32 | 1.6 | 24.02 | 0.02 +0 |
| 95654 | HPV-76 | 120 | 50.5 | 76 | 26 | 30 | 0 -0.02 | 70 | 40 | M30x3.5 | 44.5 | 1.6 | 30.02 | 0.02 +0 |
| 95655 | HPV-100-1 | 140 | 50.5 | 100 | 26 | 30 | 0 -0.02 | 69.5 | 40 | M30x3.5 | 44.5 | 1.6 | 30.02 | 0.02 +0 |
| 95656 | HPV-100 | 140 | 50.5 | 100 | 26 | 30 | 0 -0.02 | 80 | 50 | M30x3.5 | 44.5 | 1.6 | 30.02 | 0.02 +0 |
| 95657 | HPV-125 | 165 | 76 | 125 | 37.8 | 48 | 0 -0.02 | 105 | 60 | M48x5 | 82.5 | 1.6 | 48.02 | 0.02 +0 |
| 97390 | HPV-26 | 40 | 20 | 26 | 10 | 10 | 0 -0.02 | 23 | 13 | M10x1 | 13.1 | 0.5 | 10.02 | 0.02 +0 |
| 97391 | HPV-32 | 50 | 22 | 32 | 11 | 12 | 0 -0.02 | 25 | 14 | M12x1.5 | 15.9 | 0.8 | 12.02 | 0.02 +0 |
