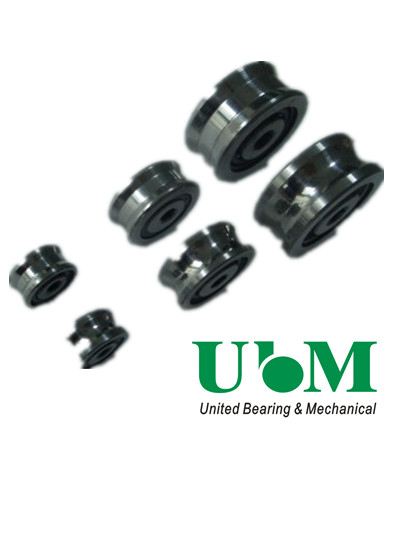

- Model： RCL RCLR series
RCL RCLR series
Details
| Suggestted | ||||||||||||||||||||
| Designation | Mass | Dimensions | ||||||||||||||||||
| De | dB | d | d1 | d1 | Y | m | S | P | L | A | B | l1 | M | SW1 | SW2 | k | combination | |||
| UBM | conc. | ecc. | min | |||||||||||||||||
| Conentric | eccentric | Kg | mm | |||||||||||||||||
| RCL 17.06 | RCLR 17.06 | 0.02 | 17 | 6 | M5×0.8 | 5 | 6.5 | 10.5 | 6 | 6 | 3.7 | 21 | 7 | 11 | 5.2 | 9 | 2.5 | 8 | 0.25 | LM 30 |
| RCL 24.06 | RCLR 24.06 | 0.04 | 24 | 6 | M8×1.25 | 8 | 11.0 | 14 | 7.7 | 7 | 5.6 | 28.2 | 11 | 14.7 | 6.5 | 14 | 4 | 13 | 0.5 | LM 40 |
| RCL 35.10 | RCLR 35.10 | 0.13 | 35 | 10 | M10×1.25 | 10 | 10.0 | 20.65 | 10.5 | 14 | 7 | 43 | 15.9 | 20.5 | 13 | 18 | 5 | 17 | 0.75 | LM 65 |
| RCP 42.10 | RCPR 42.10 | 0.185 | 42 | 10 | M12×1.25 | 17 | 17.0 | 24 | 12.5 | 12 | 9.5 | 50 | 19 | 24.5 | 11 | 25 | 6 | 19 | 0.75 | LM 120 |
| PFV 43.22 | PFVR 43.22 | 0.205 | 43 | 22 | M12×1.5 | 12 | 12.0 | 29 | 14 | 13 | 12.5 | 52 | 23 | 27 | 12 | 18 | 5 | 19 | 1 | LM 180 |
