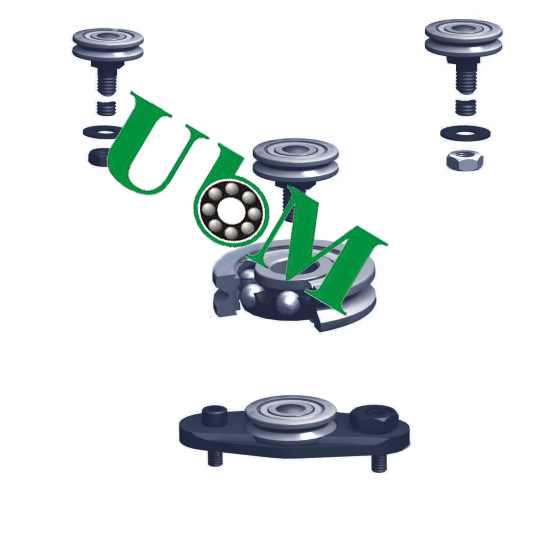

Slimline Bearings are very compact due to the single ball track design. Good rigidity is maintained by a combination of ball to raceway conformity and low radial clearance resulting in a low cost bearing ideally suited to many slide system applications. Performance of these Bearings has been confirmed by rigorous testing.
Slimline Bearings are compatible with all grades of slide and although designed to be used with particular sizes of Slide, may be “mixed and matched” in many instances.
The following options and fixing methods may be chosen to cater for most design requirements.
The Nitrile Sealed option (NS) provides a higher degree of sealing against ingress of water or debris than does the default metal shielded type although a small increase in friction may result.

The Through Hole Fixing type is available in two stud lengths covering most thicknesses of carriage or mounting plate, the short stud version being compatible with the Slimline Carriage Plates. Both versions are available in Concentric.                                     All items in this series: GSJ195,GSJ265,GJS360,GSJ580,GLJ195,GLJ265,GLJ360,GLJ580, GBHJ195,GBHJ165,GBHJ360,GBHJ580

Part	Use With			±0.025	C		C1		C2
Number	Slide Section*6	A	B	B1							D	D1
					Short Stud	Long Stud	Short Stud	Long Stud	Short Stud	Long Stud
SLJ 195 ...	V & NV	19.5	9.2	5.7	7.4	14	3.4	10	2.4	2.5	14.8	7.4
SLJ 265 ...	S & NS	26.5	11.3	6.8	9.8	19	3.8	13	3.4	4.9	19.98	9.99
SLJ 360 ...	M & NM	36	14	8.3	13.8	22	6.6	14.8	5.2	5.9	27.57	13.79
SLJ 580 ...	L & NL	58	22.8	14.3	17.8	30	8.2	20.4	5.7	7.9	46.08	23.04

R*3	S	S1	T	T1	T2	T3	±0.1	U1	V	W	X	Y	Z
							U
1.2	8	10.5	8.6	4	8	2.8	38	54	11	24.5	M4	7	7
1.5	7	9	11	5	10	3.6	50	72	14	32	M5	8.5	10
2	9.5	11.3	13.3	6.5	12.5	4.3	60	90.5	17	42	M6	10	14
3	14.5	16.4	21.9	10.5	18.5	8.6	89.5	133	25	62	M8	13	20

	F										0
E	Metric Fine	G	H	I	J	K	L	M	M1	N	-0.03	P
											O*1
7	M6 x 0.75	5	1	7.4	0.8	3.2	2.5	10	13	0.7	6	11
10	M8 x 1	7	1	9.8	1	5	3	13	17	0.75	8	13
12	M10 x 1.25	9	1.2	13.8	1.25	6	4	17	21	1	10	15
23.5	M14 x 1.5	14	1.5	17.8	1.6	8	6	22	28	1.5	14	27

Weight ~g
GSJ...	GLJ...	GBHJ...C	GBHJ...E
14	16	13	40
28	30	23	85
65	70	55	185
280	290	255	660
